SIMATIC ET 200 U
The decentralized peripheral system for using the standard modules of the S5-100 series on Profibus DP / FMS.
SIMATIC ET 200 C
Distributed peripheral device with protection class IP65 with integrated L2-DP interface for Profibus. The robust die-cast housing enables use directly in the machine, which minimizes the wiring effort.

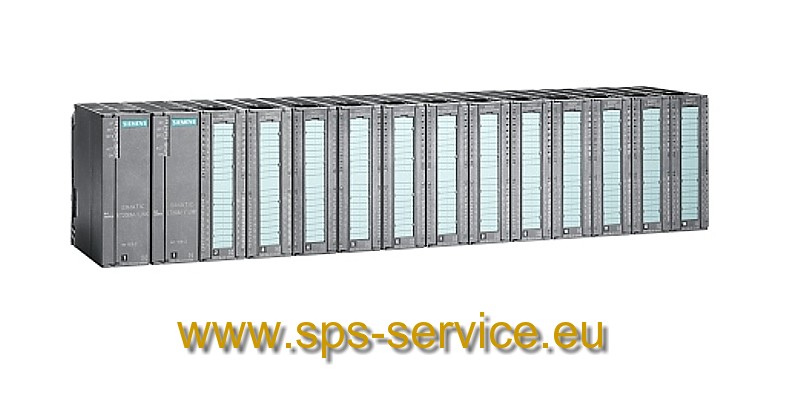

SIMATIC ET 200 M is a modular I/O system with IP20 degree of protection, particularly suitable for user-specific and complex automation tasks. It consists of a PROFIBUS DP or PROFINET interface module IM 153, up to 8 or 12 I/O modules of the S7-300 automation system (structure with bus connection or with active bus modules), and a power supply if applicable. The transmission rate is up to 12 Mbps.
- Can be expanded with S7-300 automation system signal, communication and function modules.
- Applicable Ex analog input or output modules with HART optimize the ET 200M for use in process engineering.
- Can be used in redundant systems (S7-400H, S7-400F/FH)
- Modules can be replaced during operation (hot swapping) with the bus modules active
- With Ex approval to Cat. 3 for Zone 2 acc. to ATEX 100a
- Fail-safe digital in/outputs as well as analog inputs for safety-oriented signal processing in accordance with PROFIsafe
- Supports modules with expanded user data, e.g. HART modules with HART minor variables
The SIMATIC ET 200 S is a decentralized I/O system with degree of protection IP20. It consists of:
- Interface modules with PROFIBUS (alternatively with integrated CPU) or PROFInet interface
- Input / output modules
- Technology modules
- Frequency inverters and motor starters for three-phase loads
The comprehensive module range and system-consistent handling during configuration, installation and programming allows the ET 200S to be used as a universal I / O system. The finaly scalable design enables fast and optimal adaptation to the requirements of the system.
SIMATIC ET 200 iS
A finely modular distributed I / O system with degree of protection IP 30, suitable for use in EX zone 1.
Ex-protection after CENELEC: EEx de ib [ia / ib] IIB / IIC T4, resp.
FM: Class 1 Division 2 Group A-D T4 (Class 1 Zone 1)
- Design and execution according to ATEX 100a
- Connection of intrinsically safe signals (from zone 2, 1 or 0)
- Intrinsically safe construction of the electronic modules
- Replacement of all electronic modules (also power supply and bus interface module) under voltage during operation and under Ex conditions in zone 1 -> "Hot Swapping"
- Function-oriented station structure with up to 32 electronic modules per station.
- Optimum integration of HARDT field devices (HARDT transparency)

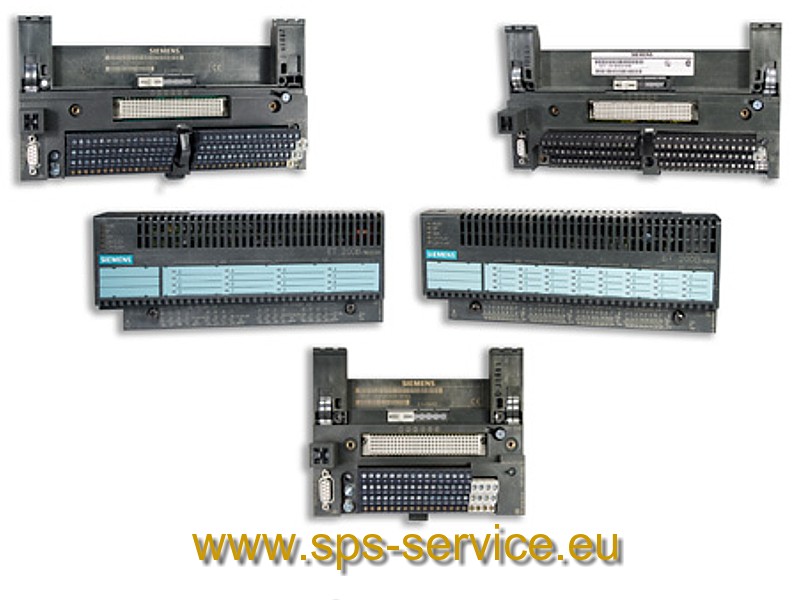

SIMATIC ET 200 B
The ET 200B is a small, compact, low-profile peripheral device with protection class IP 20. Numerous analogue and digital input / output modules are available.
The main application of the ET 200B is where few inputs / outputs are required or only a small installation depth is available.
The ET 200B is a passive slave device on the fieldbus PROFIBUS DP. The maximum transmission rate is 12 Mbit/s.
SIMATIC ET 200 L
The ET 200L is a small, compact peripheral device with degree of protection IP20.
The main application of the ET 200L is where few inputs / outputs are required in the lower power range and where space is limited.
The ET 200L is a passive slave device on PROFIBUS DP with transmission rates of up to 1.5 Mbit/s.

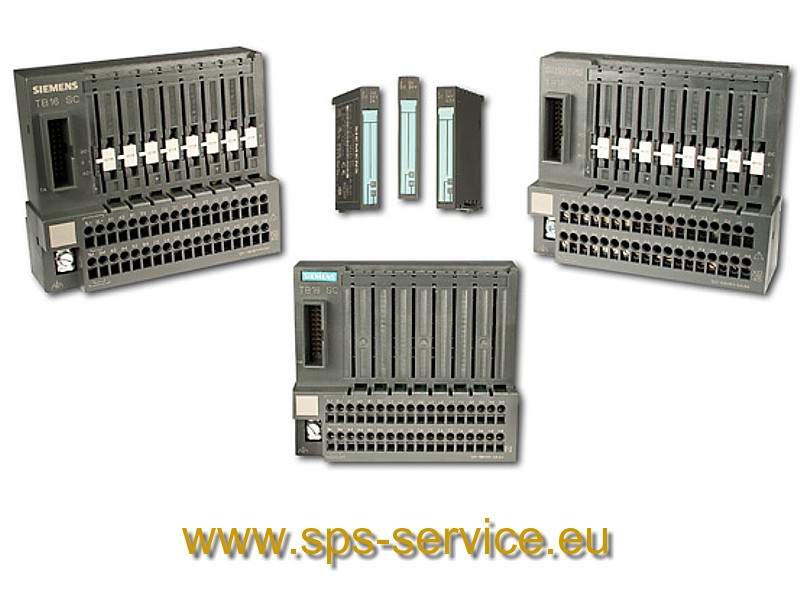

SIMATIC ET 200 SC
In the design technique, the ET 200L-SC corresponds to the ET 200L, i.e. it consists of a terminal block and an electronics block. In contrast to the ET 200L, it can be expanded with a SIMATIC SC (Smart Connect) using a terminal block TB 16SC. The connection to the PROFIBUS DP fieldbus is made via the interface integrated into the electronic block.
With the 8 electronic modules of the SIMATIC SC, which can be freely plugged into the TB 16SC, the ET200L-SC can be expanded with up to 16 digital and analog input / output channels.
Digital and analogue modules can be mixed mixed with the TB 16SC. This makes it possible to fine-tune the ET 200L-SC to the automation task.
is a decentralized peripheral device with degree of protection IP65 / IP67. Due to the high degree of protection and its robustness, it is particularly suitable for use close to the machine.
The modular design combined with a high degree of protection, the completely pluggable connection technology and the inclusion of pneumatics and drive components allow fast and optimal adaptation to the technological functional units of a machine.
Even with frequently changing requirements, system replacement times can be significantly reduced by replacing or combining different basic and expansion modules. With a transfer rate of up to 12 Mbit / s on the PROFIBUS DP, the ET 200X is also ideally suited for use in extremely time-critical applications.
SIMATIC ET 200 pro
The new modular I / O system with high degree of protection IP65 / 66/67 for machine-level, cabinet-free use. ET 200pro is characterized by a small size and an innovative design concept. In this way, the ET 200pro can be flexibly adapted to the requirements of the respective automation task with regard to connection technology, required I / Os and fieldbus connection. New features such as integrated safety technology according to PROFIsafe, PROFINET connection and module replacement under voltage allow use in a very wide range of applications.
SIMATIC ET 200 SP
The scalable SIMATIC ET 200SP I/O system is a highly flexible, modular I/O system with IP20 degree of protection. Via an interface module with PROFINET or PROFIBUS interface it can exchange IO data of the connected I/O modules with a higher-level control system. Alternatively, as further head-end stations, various PLC, F-PLC and Open Controllers are available as compact S7-1500 Controllers (Distributed Controller)
SIMATIC ET 200 iSP
The ET 200iSP is a modular, intrinsically-safe I/O system with IP30 degree of protection which can be operated in gas and dust atmospheres at ambient temperatures from -20 to +70 °C. It is optimized for use with SIMATIC PCS 7 and SIMATIC S7, but can also be integrated in other systems such as SIMATIC S5 per GSD file.
In accordance with ATEX directive 2014/34/EU, the ET 200iSP remote I/O stations can be installed directly in Ex Zones 1, 2, 21 or 22 as well as in non-hazardous areas. The intrinsically-safe sensors, actuators and HART field devices can also be located in zone 0 or 20 if necessary.

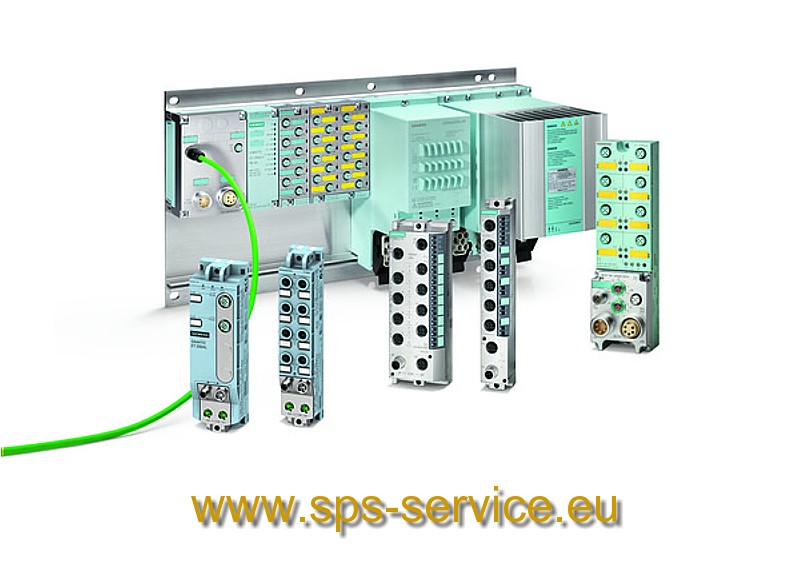

SIMATIC ET 200 eco
Die kompakte Blockperipherie ET 200eco ist ein dezentrales Peripheriegerät in Schutzart IP65/66/67 mit einfacher Handhabung und Installation.
Mit ET 200eco können digitale, analoge und IO-Link Signale am PROFIBUSverarbeitet werden.
Mit hoher Schutzart, Robustheit und geringen Abmessungen eignet sich ET 200eco besonders für den maschinennahen Einsatz.
Artikel 1-6 von 60
DP / 3WN6 UMSETZERPreis SIEMENS 1.583,00 €Ab 870,65 €Sie sparen 45 %zzgl. Mwst 19%
SINEC CP 541, L2-ANSCHALTUNG FÜR DIE PG-SCHNITTSTELLEPreis SIEMENS 1.533,00 €Ab 766,50 €Sie sparen 50 %zzgl. Mwst 19%
ET-200 HANDHELDPreis SIEMENS 1.640,00 €Ab 984,00 €Sie sparen 40 %zzgl. Mwst 19%
DP/RS 232C Schnittst. UmsetzerPreis SIEMENS 737,00 €Ab 324,28 €Sie sparen 56 %zzgl. Mwst 19%
DP/RS 232C SCHNITTST. UMSETZERPreis SIEMENS 1.021,00 €Ab 357,35 €Sie sparen 65 %zzgl. Mwst 19%
DP/DP KOPPLER, FUER PROFIBUSPreis SIEMENS 480,00 €Ab 192,00 €Sie sparen 60 %zzgl. Mwst 19%
